RS 485 Databus Cables 300/500 V
FRL-MVB-02Y(ST)CH-IOS-xPyS/FRL-MVB-02YCH-OS-xPyS

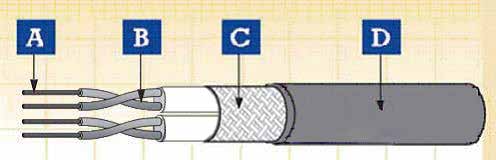

A. Conductor B. Insulation+Pair Screen C. Overall Screen D. Sheath

Application

120 Ohm data transmission cables

Construction

Multipair Databus RS 485 Double Screened Cable

Conductor: Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm2-1mm2).
Insulation: Cross linked foam PE or foam skin PE
Cable Element: Twisted pair
Pair Screen:Individual Aluminium tape
Overall Screen: Copper wire braid
Outer Sheath: Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1

Multipair Databus RS 485 Single Screened Cable

Conductor: Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm2-1mm2)
Insulation: Cross linked foam PE or foam skin PE
Cable Element: Twisted pair
Overall Screen: Copper wire braid
Outer Sheath: Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1

Electrical & Mechanical Properties

Nominal Voltage	300/500 V
Impedance	120 Ω+/-15 %
Capacitance@1KHz	41 nF/km
Min. Insulation Resistance	5000 MΩ

Chemical & Environmental Properties

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for Rolling Stock Application

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN45545-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propagation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRL-MVB-02Y(ST)CH-IOS-xPyS 300/500 V

No.of Pairs	Cross Sectional Area mm2	Number and Nominal Diameter of Strands mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1	0.22	7/0.2	4.5	58
2	0.22	7/0.2	6.2	79
4	0.22	7/0.2	6.5	118
1	0.5	16/0.2	6.6	79
2	0.5	16/0.2	9.0	105
4	0.5	16/0.2	9.8	145
1	0.75	24/0.2	9.5	115
2	0.75	24/0.2	10.3	135
4	0.75	24/0.2	11.6	182
1	1	30/0.2	11.5	125
2	1	30/0.2	12.5	150
4	1	30/0.2	13.5	180

FRL-MVB-02YCH-OS-xPyS 300/500 V

No. of Pairs	Cross Sectional Area mm2	Number and Nominal Diameter of Strands mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1	0.22	7/0.2	4.2	55
2	0.22	7/0.2	5.9	75
4	0.22	7/0.2	6.2	115
1	0.5	16/0.2	6.3	75
2	0.5	16/0.2	8.5	100
4	0.5	16/0.2	9.4	140
1	0.75	24/0.2	9.0	110
2	0.75	24/0.2	9.7	130
4	0.75	24/0.2	11.1	178
1	1	30/0.2	11.0	120
2	1	30/0.2	12.0	145
4	1	30/0.2	13.0	175
